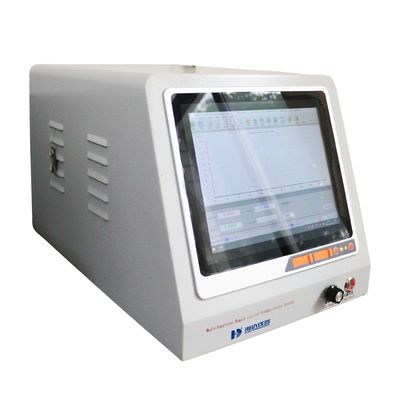

Haidathermal Conductivity Tester Hot Disk Method Surface Temperature / Measuring Time

Imagem Grande : Haidathermal Conductivity Tester Hot Disk Method Surface Temperature / Measuring Time

Detalhes do produto:

Lugar de origem:	China
Marca:	Haida
Certificação:	CE,,ISO
Número do modelo:	60088-HD

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	1
Preço:	Negociável
Detalhes da embalagem:	Cada conjunto protegido com fibra de resina e filme de PP, em seguida, colocar em forte caixa de mad
Tempo de entrega:	20 dias após a confirmação do pedido
Termos de pagamento:	L/C, T/T, D/A, D/P, Western Union, MoneyGram
Habilidade da fonte:	300 conjuntos por mês

Contato

Haidathermal Conductivity Tester Hot Disk Method Surface Temperature / Measuring Time

descrição

Modo produzido ozônio:	Gerador do ozônio ou método UV da absorção	Modo de ensaio A:	Temperatura ambiente
Exposição:	Digital	Velocidade de ensaio:	Ajustável
Produto:	equipamento de teste de borracha	Método de Controle:	Teste automático por computador
A temperatura soou:	Temperatura normal ~ 200°C	Potência de aquecimento elétrico:	AC220V ± 10%50HzAC220V ± 10%50Hz
Normas de ensaio:	ASTM, ISO, GB, JIS, etc.
Destacar:	Haidathermal Conductivity Tester , surface temperature Thermal Conductivity Tester , Hot Disk Thermal Conductivity Tester

^{_{Thermal Conductivity Tester (Flat Plate Thermofluidometer Method)}}

The thermal conductivity tester adopts the transient plane heat source method, based on TPS transient plane heat source technology, and uses a Hot Disk probe. It can be used to test the thermal conductivity, thermal conductivity (thermal diffusion coefficient), specific heat capacity, thermal storage coefficient and thermal resistance of metals, alloys, graphite, thermal grease, silicone, silicone rubber, ceramics, rock and soil, rocks, polymers, paper, fabrics, foam plastics, concrete, composite panels, paper honeycomb panels and other solids, powders, liquids, pastes, coatings, films, thermal insulation materials, insulation materials, anisotropic materials, etc.

Haidathermal Conductivity Tester Hot Disk Method Surface Temperature / Measuring Time 0

Technical Paramet

Item	Parameters
Thermal conductivity range	0.001~500 w/(m.k), resolution 0.0001w/(m.k)
Thermal diffusion coefficient range	0.1~100m2/s
Thermal storage coefficient range	0.1~30w/(m2.k)
Specific heat capacity range	0.1~5kJ/(kg.ºC)
Thermal resistance range	0.5~0.000005mm2.k/w
Temperature measuring accuracy	≤0.0001ºC
Measurement relative error	≤3%
Repeatability error	≤3%
Measuring time	1~120 seconds
Sample test temperature range	Room temperature (Various high and low temperature control chamber or test states under vacuum can be optional according to customer requirements)
Probe	Φ15mm
Various sample tests	a. Solid block or round, square, or special-shaped samples do not require special preparation, only a relatively flat sample surface is required, and a special sample clamping device is provided. b. There are no special requirements for powder, paste, or liquid substances, and a special sample test box is provided. c. For thinner materials (thickness 0.01-1mm), special test plans and mathematical models are used for testing. d. For high-conductivity materials (100-500W), special test plans and mathematical models are used for testing. e. For thermal insulation materials (0.010-0.050W), special test plans and mathematical models are used for testing.
Control mode	Fully automatic test software, fast and accurate analysis of sample test process parameters and report output
Machine dimension	(LWH)38040450mm
Machine weight	Approx. 20KG
Power	AC 220V±10%, 50/60 Hz, 500W

About us

Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.

Haidathermal Conductivity Tester Hot Disk Method Surface Temperature / Measuring Time 12

Haidathermal Conductivity Tester Hot Disk Method Surface Temperature / Measuring Time 13

Haidathermal Conductivity Tester Hot Disk Method Surface Temperature / Measuring Time 14

Why choose us?
1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined

FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
