Detalhes do produto:
|
Tempo da aplicação da chama: | Ajustável: 0-3200,0 segundos | Tempo de queima: | Ajustável: 0-3200,0 segundos |
---|---|---|---|
Ângulo do queimador: | Fixado a 90° (vertical) | Altura da chama: | Ajustável: 20-100 mm (conforme às normas) |
Exposição da temperatura: | Leitura digital; resolução: 0,1°C | régua de aço: | comprimento: 500 mm; precisão: 1 mm |
Gás de combustível: | Gás liquefeito de alta pureza | Fornecimento de energia: | AC 220V, 50Hz |
Dimensões da câmara de combustão (L × W × H): | 385 × 204 × 360 mm | ||
Destacar: | Automotive Interior Materials Flammability test equipment,Flammability Testing Machine,Automotive Interior Materials Flammability Testing Equipment |

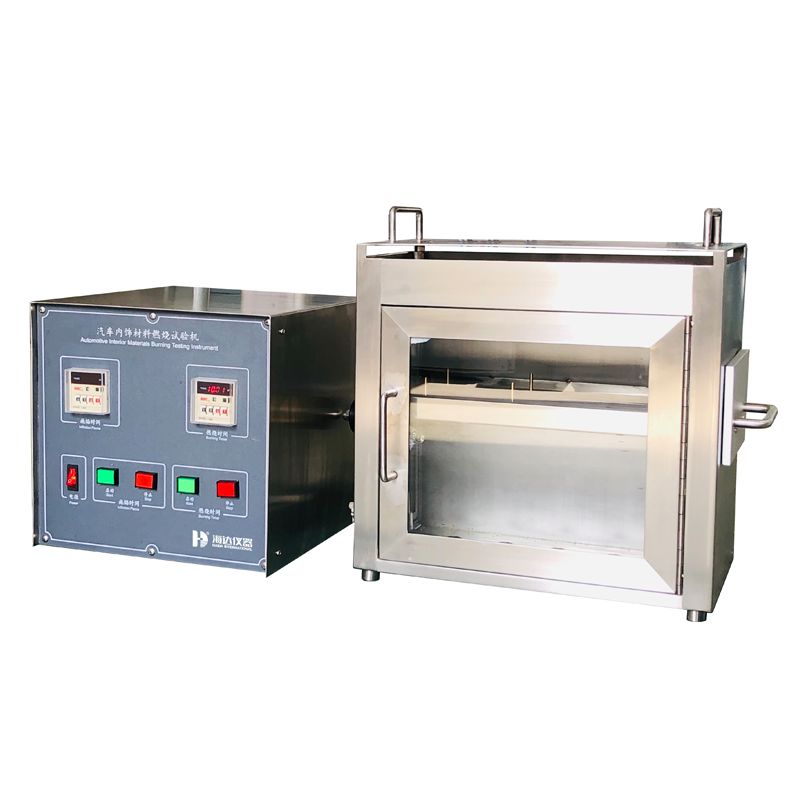

Automotive Interior Materials Flammability Tester is designed and manufactured in accordance with GB 8410-2006 to evaluate the horizontal burning characteristics of automotive interior materials.
GB 8410-2006, ASTM D5132, FMVSS 571.302, ISO 3795
Model | 6022-HD |
Combustion Chamber Dimensions (L×W×H) | 385×204×360mm |
Flame Application Time | Adjustable: 0-99 minutes 99 seconds |
Burning Time | Adjustable: 0-99 minutes 99 seconds |
Burner Angle | Fixed at 90° (vertical) |
Burner Specifications | Nozzle inner diameter: Ø9.5mm; Effective length: 100mm; Equipped with air adjustment holes. |
Flame Height | Adjustable: 20-100mm (standard-compliant). |
Thermometer | Range: 150°C; Resolution: 1°C. |
Steel Ruler | Length: 500mm; Accuracy: 1mm |
Fuel Gas | High-purity liquefied gas |
Configuration | Includes: |
• Control box | |
• Combustion chamber | |
• Burner lamp | |
• Solenoid valve | |
• High-voltage igniter | |
• Thermometer | |
• Signal control cables | |
• Upper/lower sample holders | |
• 500mm/1mm steel ruler. | |
Power Supply | AC 220V, 50Hz |
After-Service:
Should any issues arise during your testing process, we guarantee:
Timely Response: A formal reply within 48 hours.
Swift Resolution: A proposed solution within 3 working days.
Comprehensive Support: Access to English operation manuals, instructional videos, and video conference assistance.
Why Choose Us?
Global-Ready Design
Built-in voltage auto-switching (110V/220V), international plug compatibility, and safety-certified indicator protection.
Exceptional After-Sales Support
18-month comprehensive warranty. Industry-unique benefit: Complimentary repair service for controllers – even competitor units. Simply ship the controller to us.
Binding Quality Commitment
A formal Quality Assurance Letter accompanies every contract signing, guaranteeing performance and building trust.
Industrial-Grade Protective Packaging
(e.g., Triceratops) is individually wrapped in anti-static bubble film and secured in reinforced wooden crates. This ensures:
• Shock absorption & impact resistance
• Moisture & corrosion protection
• Non-toxic, odorless materials
• Optimal transparency for inspection
FAQ:Q: Are you a trading company or manufacturer?
A: Integrated manufacturer with 21+ years specializing in test equipment and 6 years of export expertise.
Q: What is your delivery timeline after order confirmation?
A:Standard orders: 10-25 working days
Stock orders: Ship within 3 days
Note: Lead times vary by product specifications and order volume.
Q: What are your warranty and after-sales service terms?
A:12-month comprehensive warranty on all testing machines
Industry-unique benefit: Complimentary controller repairs (including non-HAIDA units)
Post-warranty support: Dedicated technical team for troubleshooting, operational guidance, and complaint resolution
Q: How do you ensure product quality and service?
A:100% pre-shipment inspection with full performance testing
Global-ready design: Voltage auto-switching (110V/220V), international plugs, safety-certified indicators
Multi-tier training support:
✓ Instructional operation videos
✓ On-site engineer training (upon request)
Market-proven reliability:
Globally recognized by industrial users
Q: Do you offer product customization?
A: Yes, we develop tailored solutions based on your technical parameters and application requirements.
