Flammability Testing Equipment For ASTM D5207-03 IEC 60695-11-3 And GB/T 5169.15 Standards

Certificado
CHINA Hai Da Labtester Certificações
CHINA Hai Da Labtester Certificações
Revisões do cliente
Sim nós recebemos a máquina na semana passada. Esta máquina era agradável, e agradece aos serives pós-vendas, era muito profissional.

—— Peter Mosa

Em nome da empresa para visitar suas fábricas e empresas, a equipe técnica é muito profissional e paciente, acho que ficaria feliz em cooperar com você novamente.

—— Steve Hubbard

Estou Chat Online Agora

Flammability Testing Equipment For ASTM D5207-03 IEC 60695-11-3 And GB/T 5169.15 Standards

Flammability Testing Equipment For ASTM D5207-03 IEC 60695-11-3 And GB/T 5169.15 Standards
Flammability Testing Equipment For ASTM D5207-03 IEC 60695-11-3 And GB/T 5169.15 Standards

Imagem Grande :  Flammability Testing Equipment For ASTM D5207-03 IEC 60695-11-3 And GB/T 5169.15 Standards

Detalhes do produto:
Lugar de origem: China
Marca: Haida
Certificação: CE,,ISO
Número do modelo: 6015-HD
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 1
Preço: Negociável
Detalhes da embalagem: Cada conjunto protegido com fibra de resina e filme de PP, em seguida, colocar em forte caixa de mad
Tempo de entrega: 20 dias após a confirmação do pedido
Termos de pagamento: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Habilidade da fonte: 300 conjuntos por mês

Flammability Testing Equipment For ASTM D5207-03 IEC 60695-11-3 And GB/T 5169.15 Standards

descrição
Termócopo: Termócopo de arame fino de tipo K (NiCr/NiAl) blindado com uma bainha de diâmetro 0,5 mm Temporizador: Intervalo ajustável: 0,01-99,99 segundos
Diâmetro: Ø9,00±0,01 mm comprimento: 190,14 ± 0,02 mm
Ângulo chanfrado: 45 ± 0,5° Massa (pré-perfuração): 100,00 g ± 0,05 g
material: Cobre eletrolítico de alta condutividade Acabamento da Superfície: Com um teor de potássio igual ou superior a 20%, em peso
Destacar:

GB/T 5169.15 Flammability Testing Equipment

,

ASTM D5207-03 Flammability Testing Equipment

,

IEC 60695-11-3 Flammability Testing Equipment

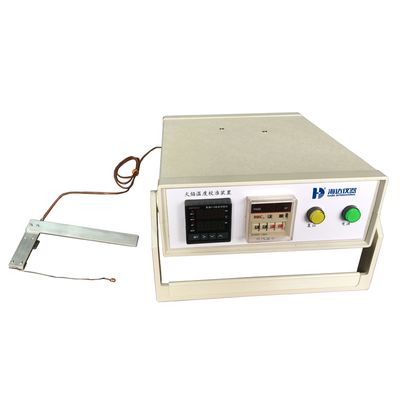

Flame Temperature Calibration Device 500W

Product Description


This calibration device is designed in accordance with ASTM D5207-03 and related IEC, UL, GB standards for measuring flame temperatures in combustion test equipment.

Calibration Procedure

Position the copper block 55±1mm above the needle flame burner. Ignite the flame; the time for the copper block temperature to rise from 100°C±2°C to 700°C±3°C must be 54±2 seconds to validate the flame for testing.
Perform three measurements, allowing the copper block to cool naturally to <50°C between tests.

Test standard

ASTM D5207-03: Standard Practice for Confirmation of 20-mm (50-W) and 125-mm (500-W) Test Flames for Small-Scale Burning Tests on Plastic Materials. GB/T 5169.15: Fire Hazard Testing for Electric and Electronic Products - Part 15: Test Flames - 500W Flame Apparatus and Confirmational Test Methods.
IEC 60695-11-3: Fire hazard testing for electric and electronic products - Part 11-3: Test flames - 500W flames - Apparatus and confirmational test methods.

Product Specifications
Model 6015-HD
Thermocouple Armored K-type (NiCr/NiAl) fine-wire thermocouple with a 0.5mm diameter sheath.
Timer Adjustable range: 0.01-99.99 seconds
Copper Block Specifications
Diameter Ø9.00±0.01mm
Length 19.14±0.02mm
Bevel Angle 45±0.5°
Mass (Pre-drilling) 10.00g±0.05g
Material High-conductivity electrolytic copper
Surface Finish Fully polished
Moel6001-
