5086-HD Film Pendulum Impact Tester
Product Overview
The 5086-HD Film Pendulum Impact Tester measures the pendulum impact resistance of plastic films, sheets, and composite films using a standard pendulum head and weighted pendulum arm. Ideal for testing impact toughness of various packaging materials including food and medicine packaging films, metal foils, and paper composites.
Key Features
- Measures impact resistance of plastic films, composite films, and packaging materials
- Suitable for testing paper and paperboard impact resistance
- Digital LCD display for precise measurements
- Adjustable frequency range (60-300 round/min)
- Multiple unit options (Kgf, N, Lbf)
- Power-driven operation for consistent testing
Technical Specifications
| Attribute |
Value |
| Function |
Compression test, Paper Tube Compressive Strength Test, Burst tester, Tensile test |
| Display |
LCD, Digital display |
| Units switch |
Kgf, N. (Optional), Lbf |
| Steel Ball |
16mm * 20 |
| Frequency Range |
60-300 round/min adjustable |
| Drive Mode |
Power-driven |
| Gross Weight |
120kg |
| Clamping Speed |
50-300mm/min |
| Test Speed |
12.7mm/min |
| Force Resolution |
1/500000 of the maximum test force fs |
| Power |
AC 220V，2.6A |
| Dimensions |
530(L)*490(D)*960(H)mm |
Testing Parameters
| Parameter |
Specification |
| Capacity |
3J |
| Scale value |
0.01J |
| Pendulum swing radius |
R280 mm |
| Pendulum angle |
90° |
| Impact speed |
2.5m/S |
| Impact head size |
Φ12.7 mm |
| Sample holder diameter |
Φ60, Φ89mm |
| Sample size |
100 X 100 mm |
Design Standards
Complies with GB/T8809 and ASTM D3420 testing standards.
Applications
Ideal for testing impact resistance of various materials including PE/PP composite films, aluminized films, aluminum-plastic composite films, nylon films, plastic rubber films, metal foil materials, and paper/paperboard composites used in packaging applications.
Testing Principle
The instrument uses a semi-spherical punch to impact and break the sample at a controlled speed, measuring the energy consumed during impact to evaluate the material's anti-pendulum impact energy value.

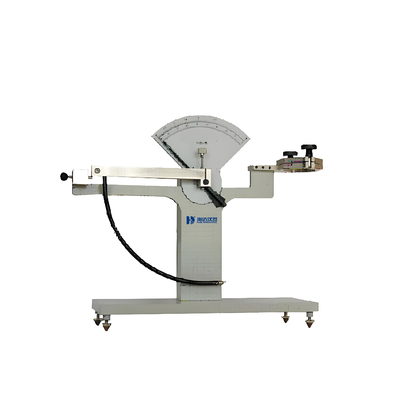

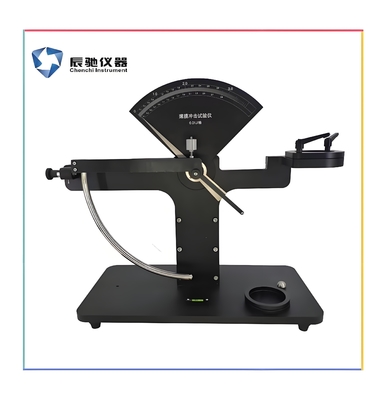

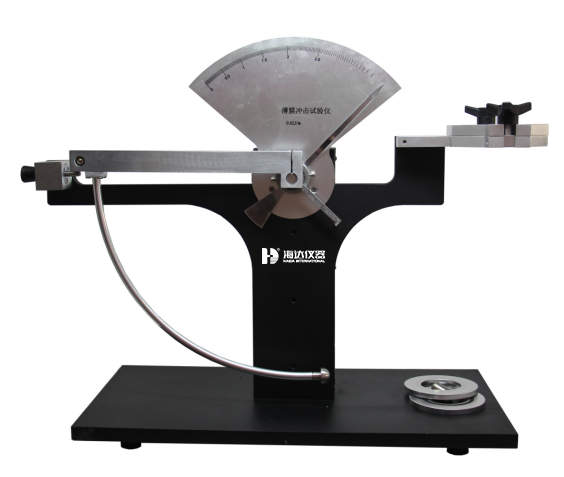

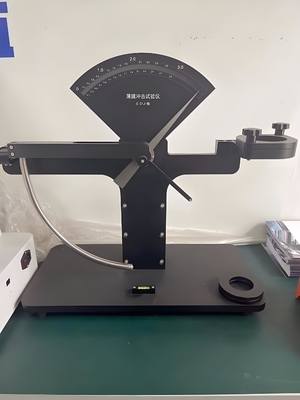

Product Images
Haida Bottle Compression Test Machine
Haida Testing Equipment
Haida Laboratory Testing Machine
About Haida
Haida products are extensively utilized across diverse industries including paper goods, packaging, ink printing, adhesive tapes, bags, footwear, leather goods, environmental protection materials, toys & baby products, hardware, electronics, plastics, and rubber. They are equally suitable for all research institutions, quality inspection agencies, and academic fields. Our products comply with UL, ASTM, JIS, GB, and ISO standards.
